Facade Panels

Facade panel solutions designed to complement modern architectural approaches have been developed to meet expectations regarding both aesthetic appeal and functional use. They offer flexibility for projects through a range of colour and installation options.

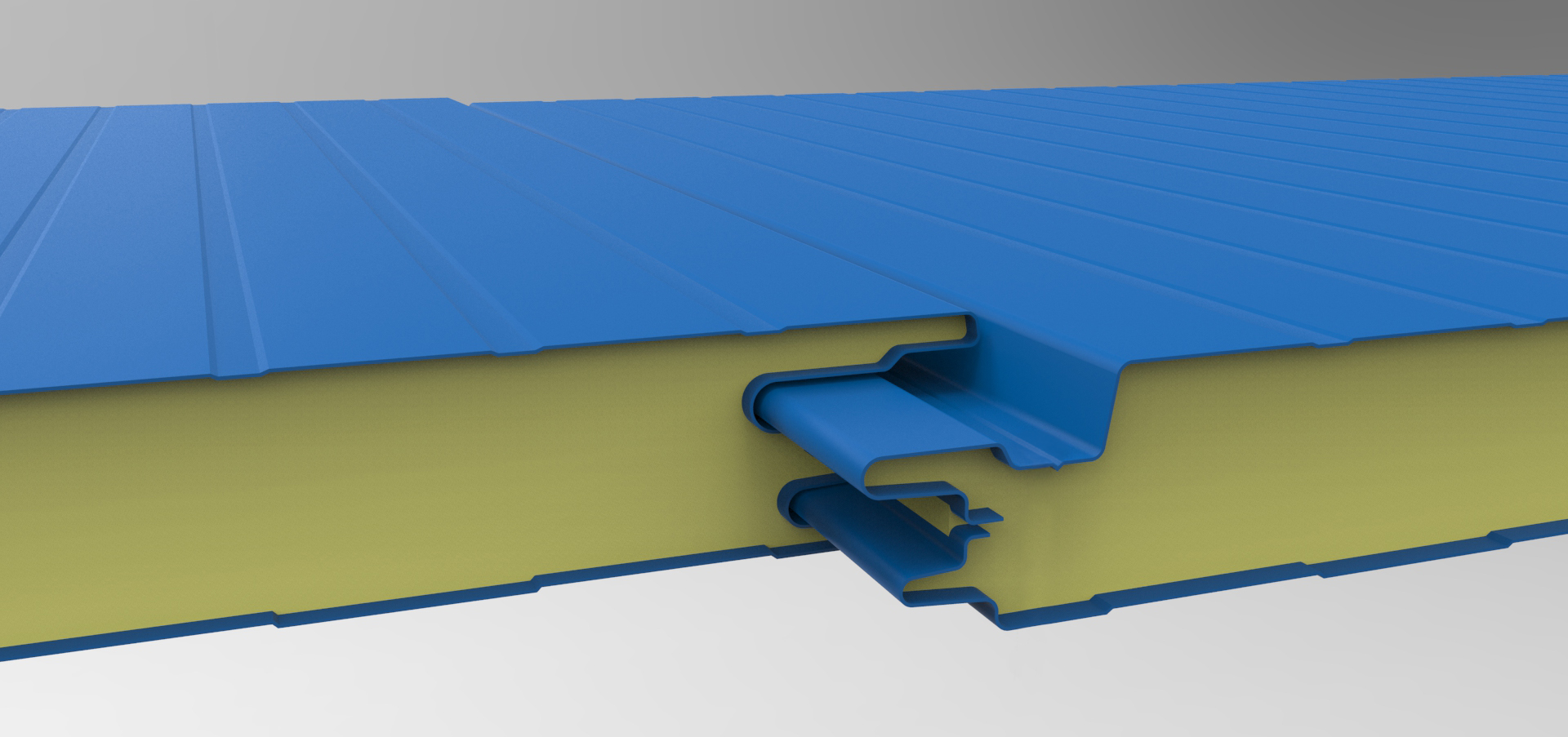

W | Concealed-Fix Facade Panel with Double Interlocking Joints
Görsel 1
Görsel 2
Görsel 3
Görsel 4

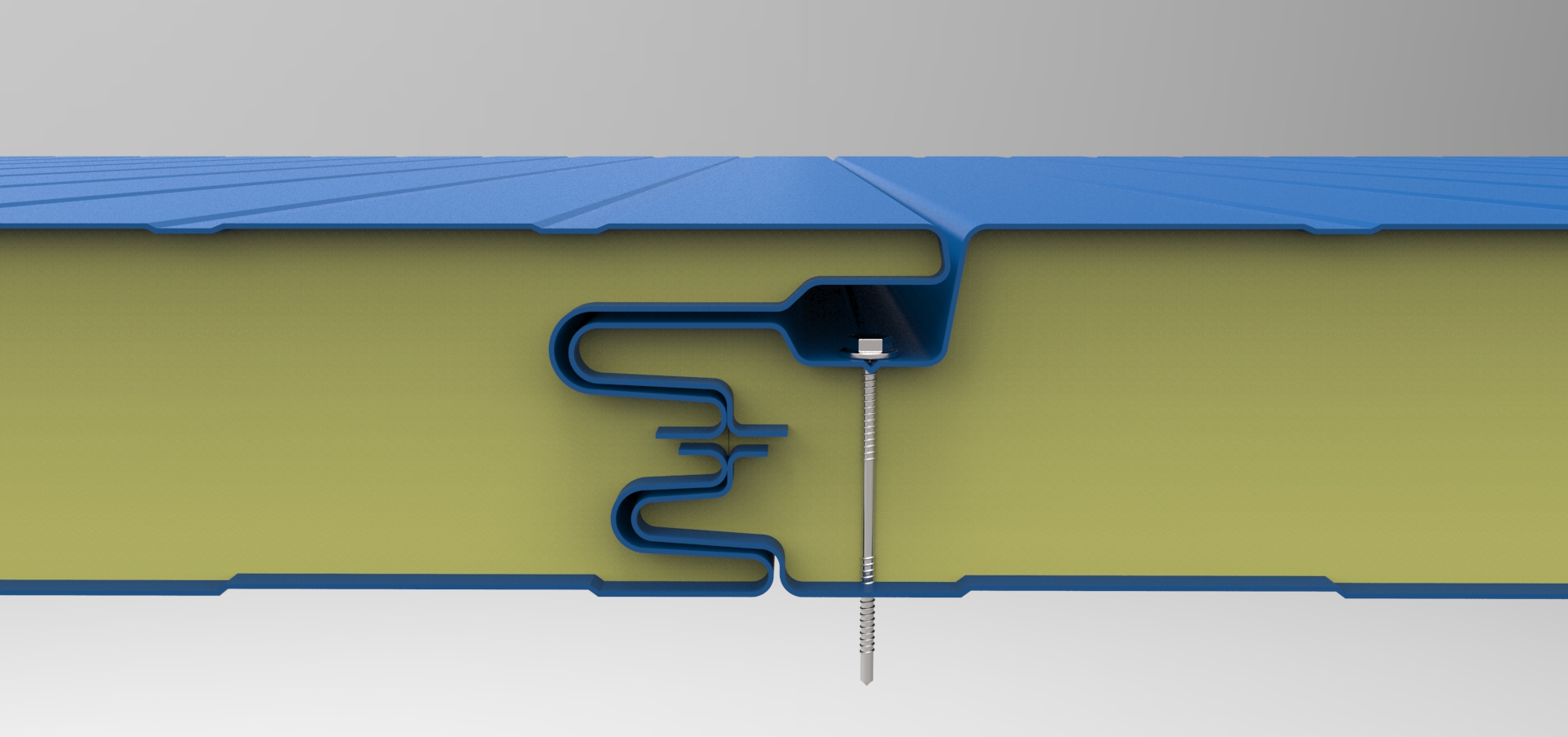

W | Concealed-Fix Facade Panel with Double Interlocking Joints

Our Concealed-Fix Facade Panel with Double Interlocking Joints, distinguished by its aesthetic appearance and modern design, adds a sleek look to your buildings while providing superior air and water tightness.

Technical Specifications

Sheet Metal Properties Painted Galvanised Sheet Metal, Painted Aluminium
Paint Properties Polyester, PVDF, Plastisol, PVC
Useful Width 1000 mm
Minimum Length 2,5 m
Maximum Length 15 m
Thickness 50mm - 60mm - 75mm - 100mm - 120mm - 145mm
Closed-Cell Ratio 90% (ASTM D 2856)
Thermal Conductivity Value λ 0,024 W/mK (EN 12667)
Level of Dimensional Stability -25 °C to 70 °C / 20 hours / max. 1% (UNI 8069)

Applications

  • Industrial Buildings
  • Commercial Buildings
  • Social Structures
  • Agricultural and Livestock Structures
  • Container Structures
Popup Görsel

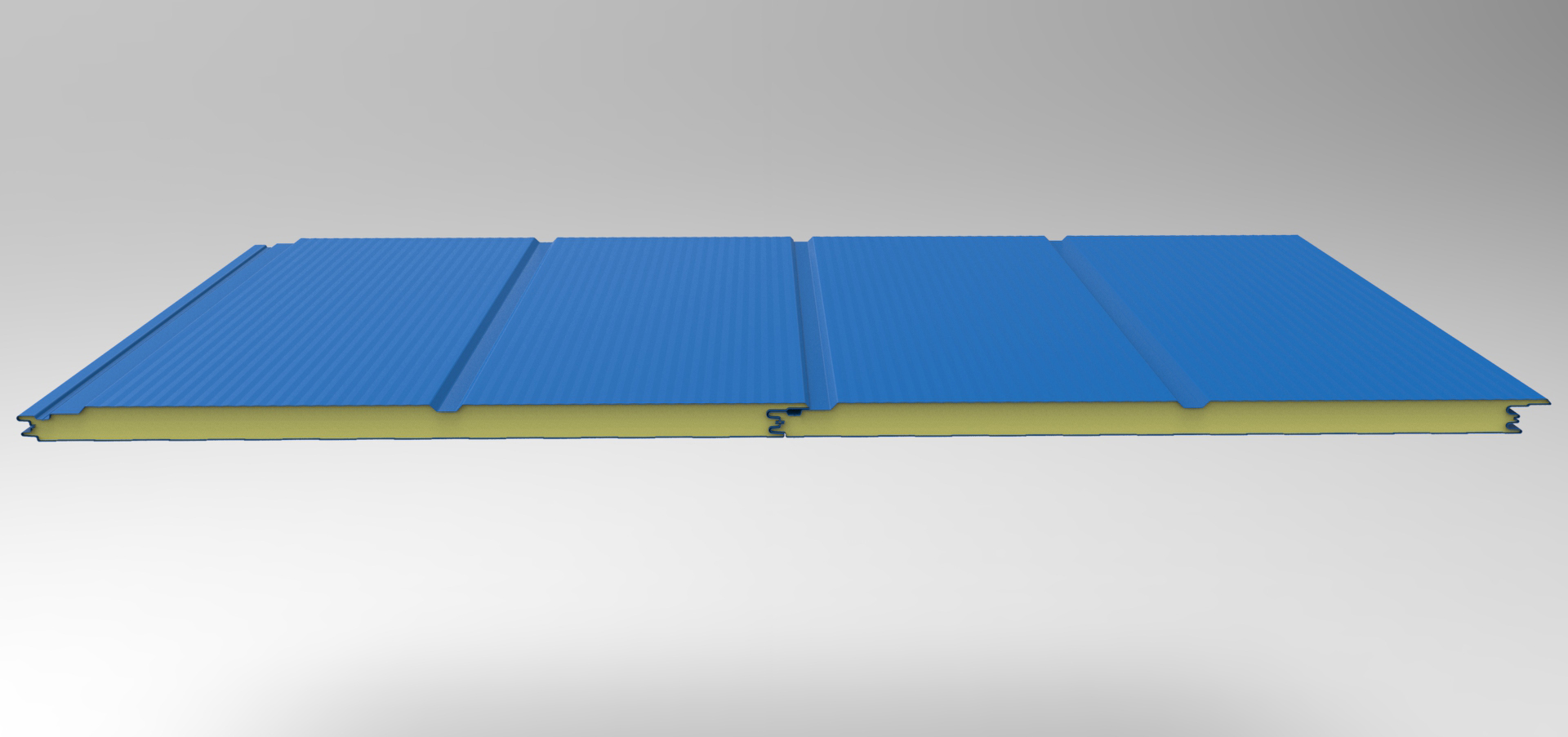

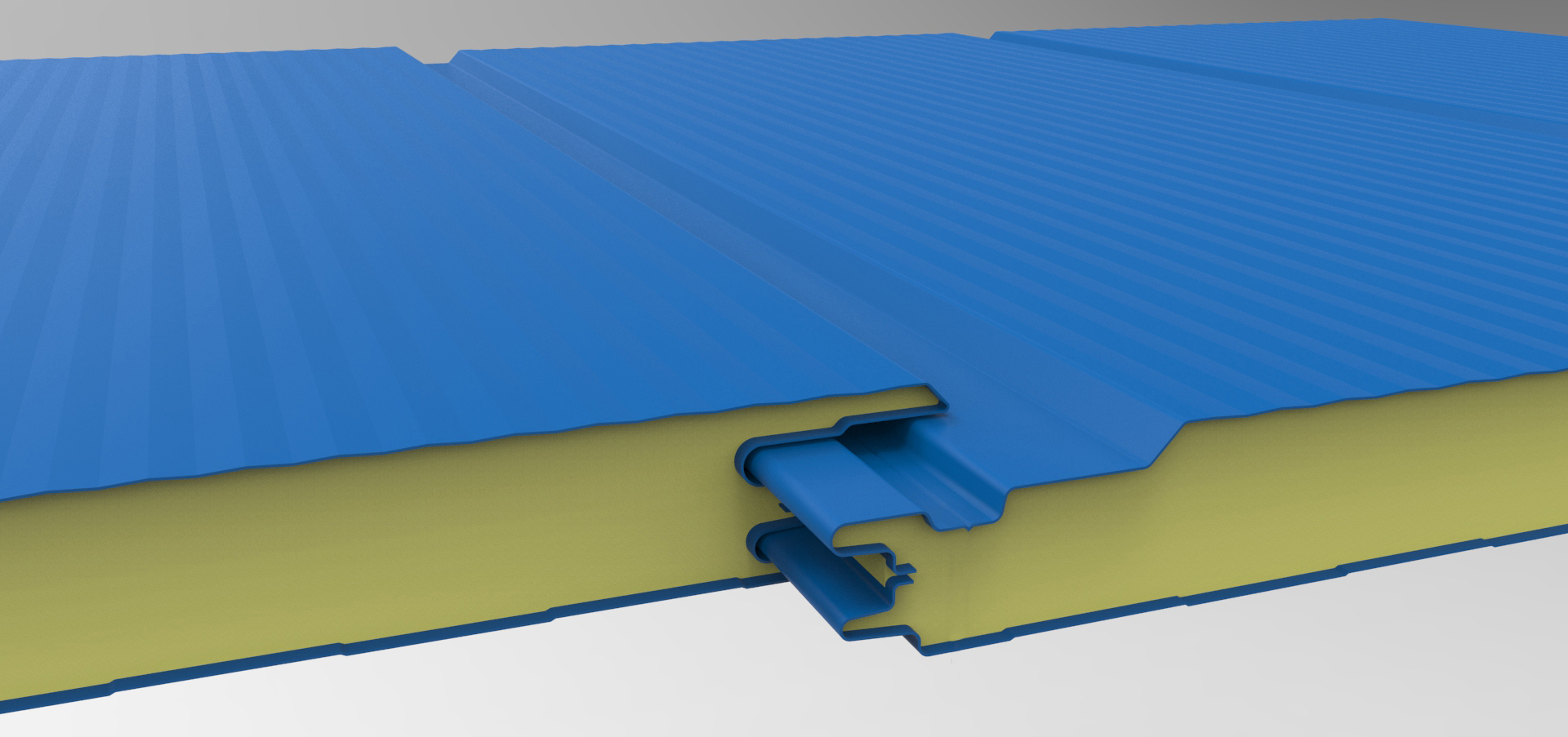

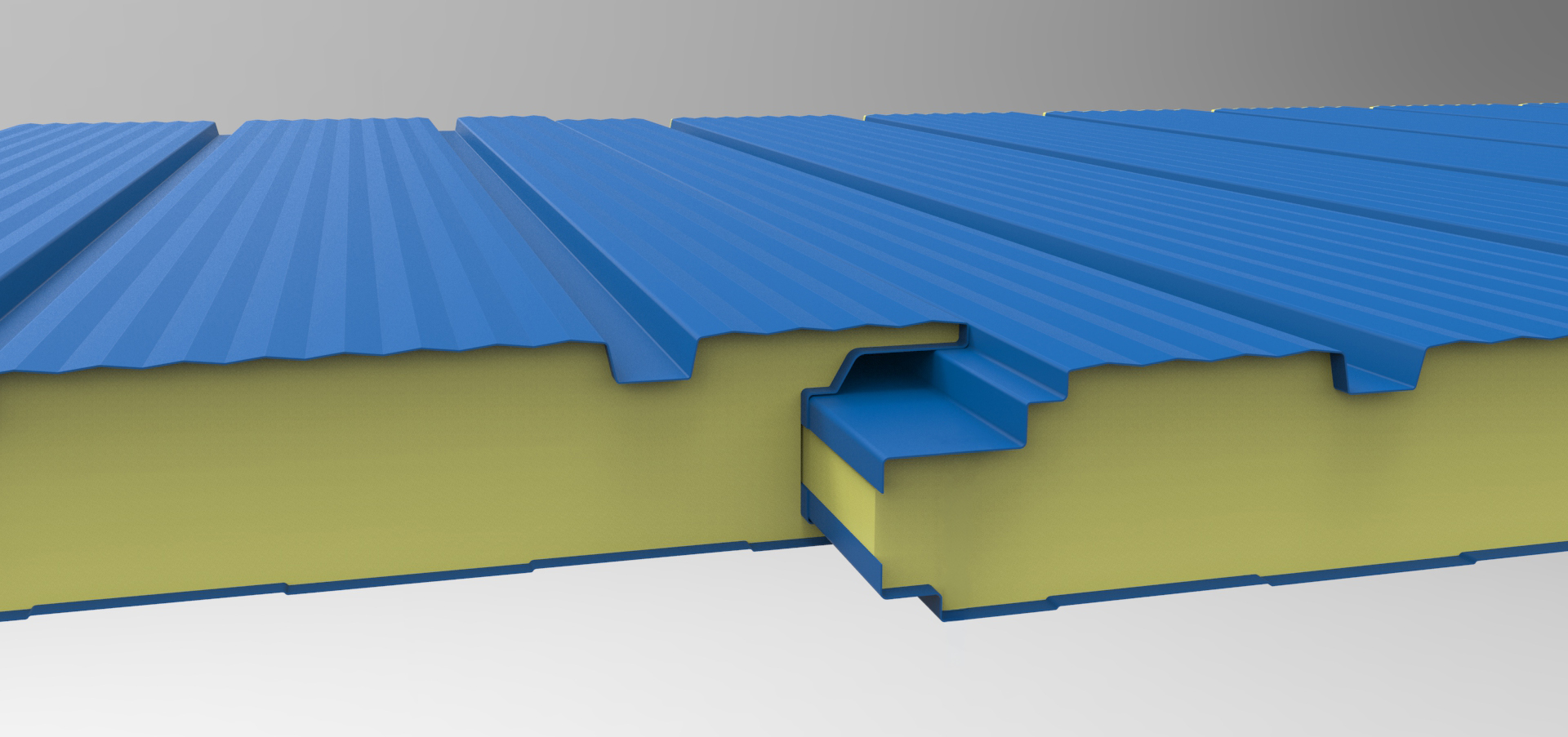

Double Interlocking Linear Fuga Model
Hat Fuga Modeli
Görsel 1
Görsel 2
Görsel 3
Görsel 4

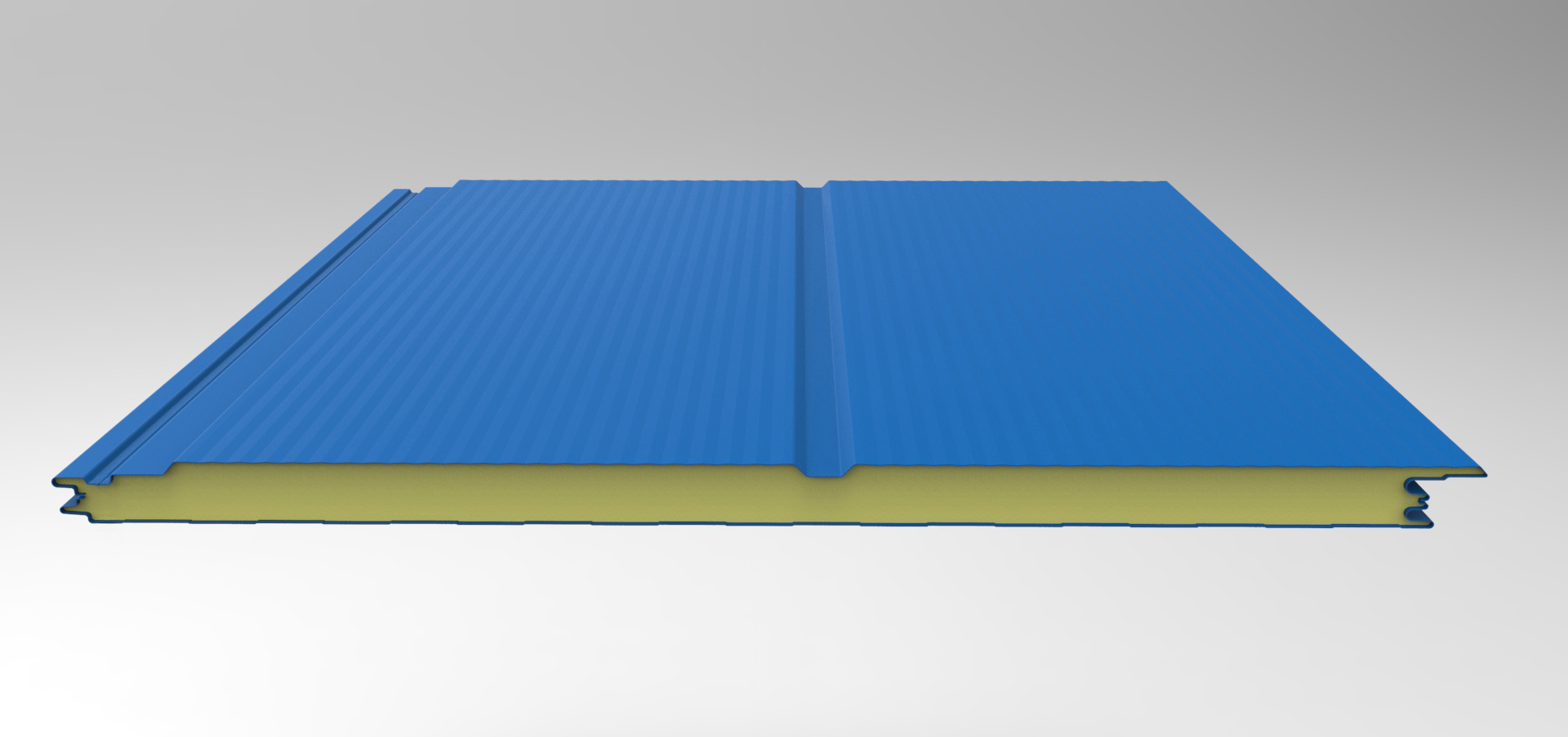

Double Interlocking Linear Fuga Model

Our facade panel, distinguished by its sleek and modern double interlocking linear fuga design, adapts to various architectural styles while offering high thermal insulation and durability.

Technical Specifications

Sheet Metal Properties Painted Galvanised Sheet Metal, Painted Aluminium
Paint Properties Polyester, PVDF, Plastisol, PVC
Useful Width 1000 mm
Minimum Length 2,5 m
Maximum Length 15 m
Thickness 50mm - 60mm - 75mm - 100mm - 120mm - 145mm
Closed-Cell Ratio 90% (ASTM D 2856)
Thermal Conductivity Value λ 0,024 W/mK (EN 12667)
Level of Dimensional Stability -25 °C to 70 °C / 20 hours / max. 1% (UNI 8069)

Areas of Application

  • Industrial Buildings
  • Commercial Buildings
  • Social Structures
  • Agricultural and Livestock Structures
  • Container Structures
Popup Görsel

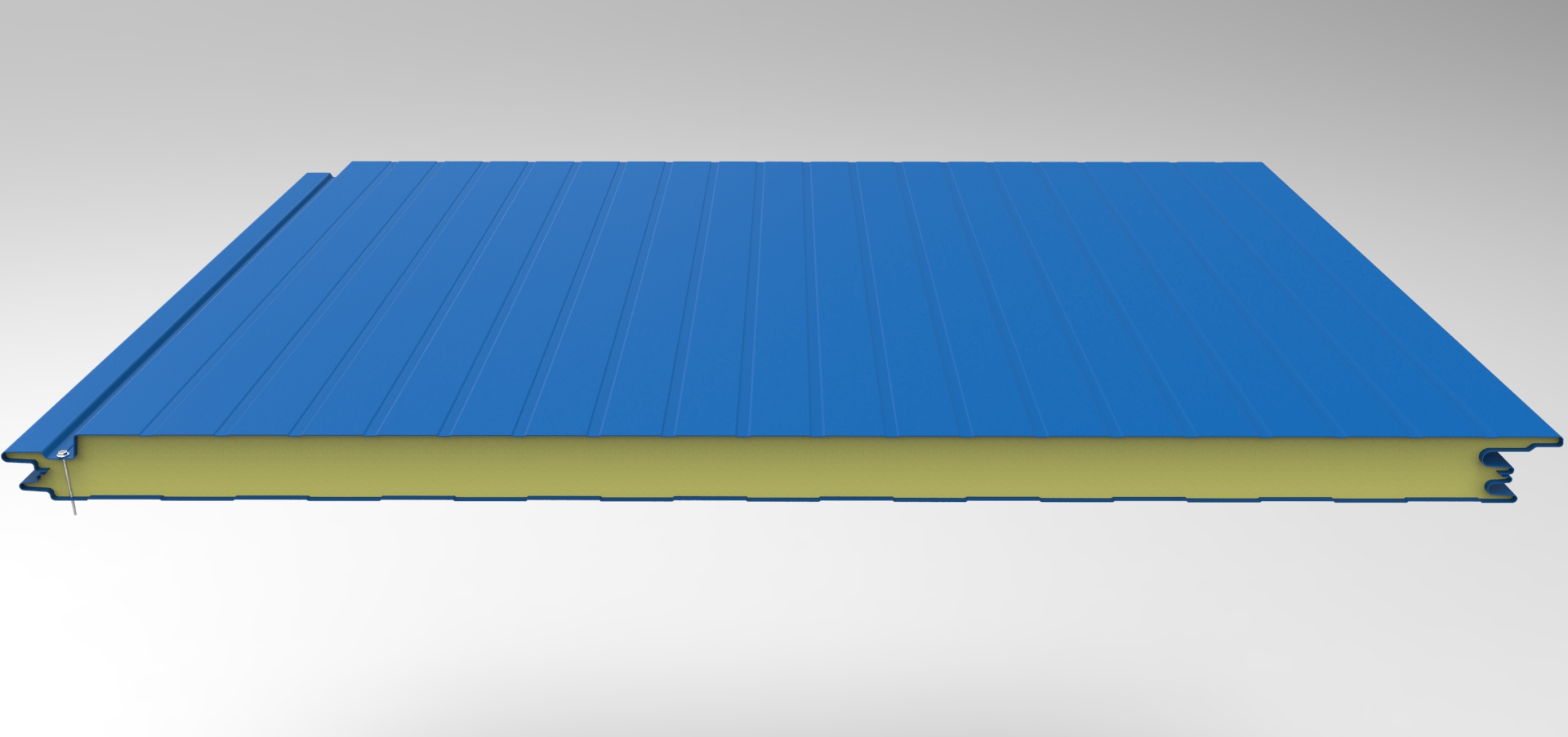

WM | Classic Concealed-Fix Facade Panel
WM Gizli Vidalı Cephe Paneli Mirror Desenli
Görsel 1
Görsel 2

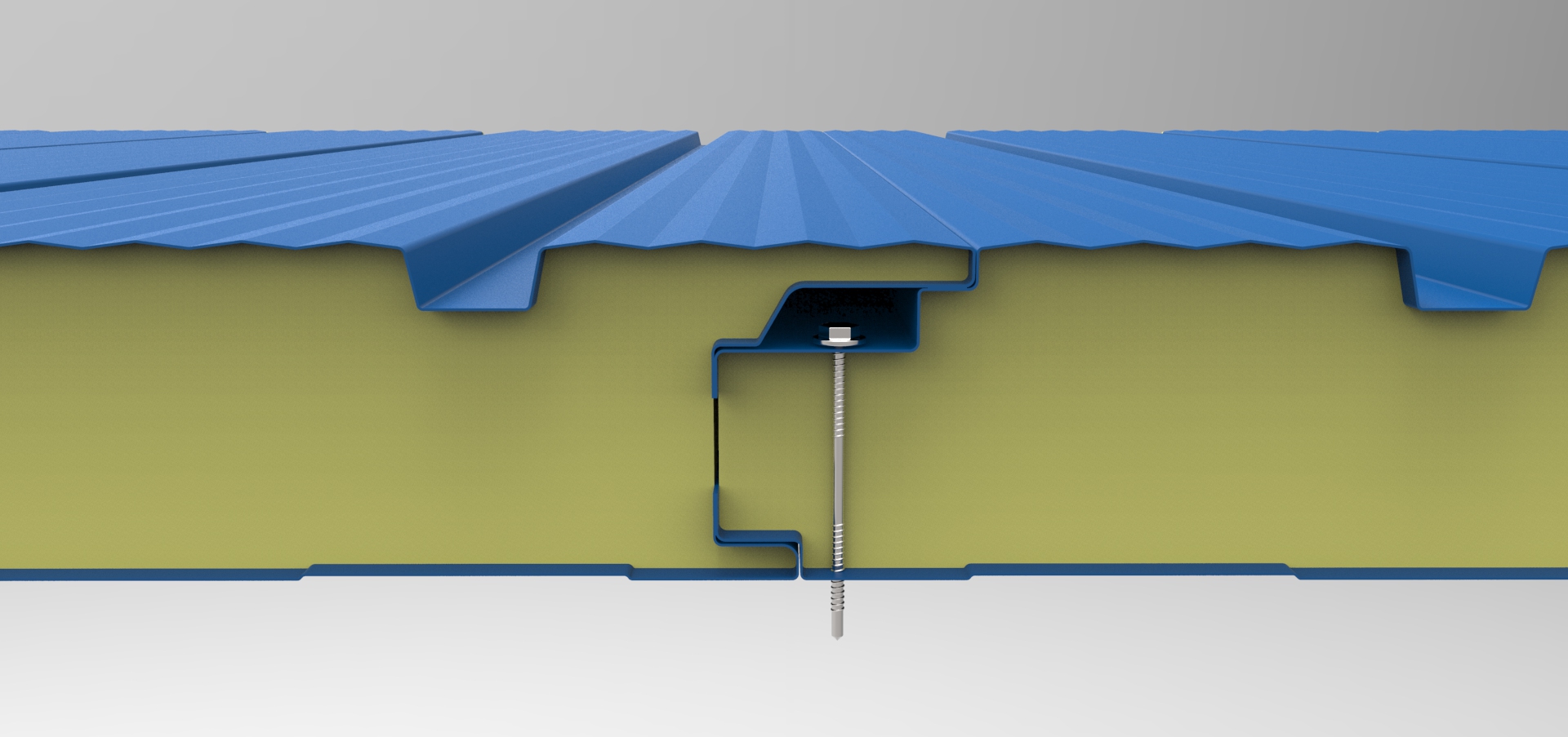

WM | Classic Concealed-Fix Facade Panel

Our classic concealed-fix facade panel, featuring a mirror pattern that delivers a modern and elegant appearance, adds a unique aesthetic to your buildings while providing superior performance and durability.

Technical Specifications

Sheet Metal Properties Painted Galvanised Sheet Metal, Painted Aluminium
Paint Properties Polyester, PVDF, Plastisol, PVC
Useful Width 1000 mm
Minimum Length 2,5 m
Maximum Length 15 m
Thickness 40mm - 50mm - 60mm
Closed-Cell Ratio 90% (ASTM D 2856)
Thermal Conductivity Value λ 0,024 W/mK (EN 12667)
Level of Dimensional Stability -25 °C to 70 °C / 20 hours / max. 1% (UNI 8069)

Applications

  • Industrial Buildings
  • Commercial Buildings
  • Social Structures
  • Agricultural and Livestock Structures
  • Container Structures
Popup Görsel

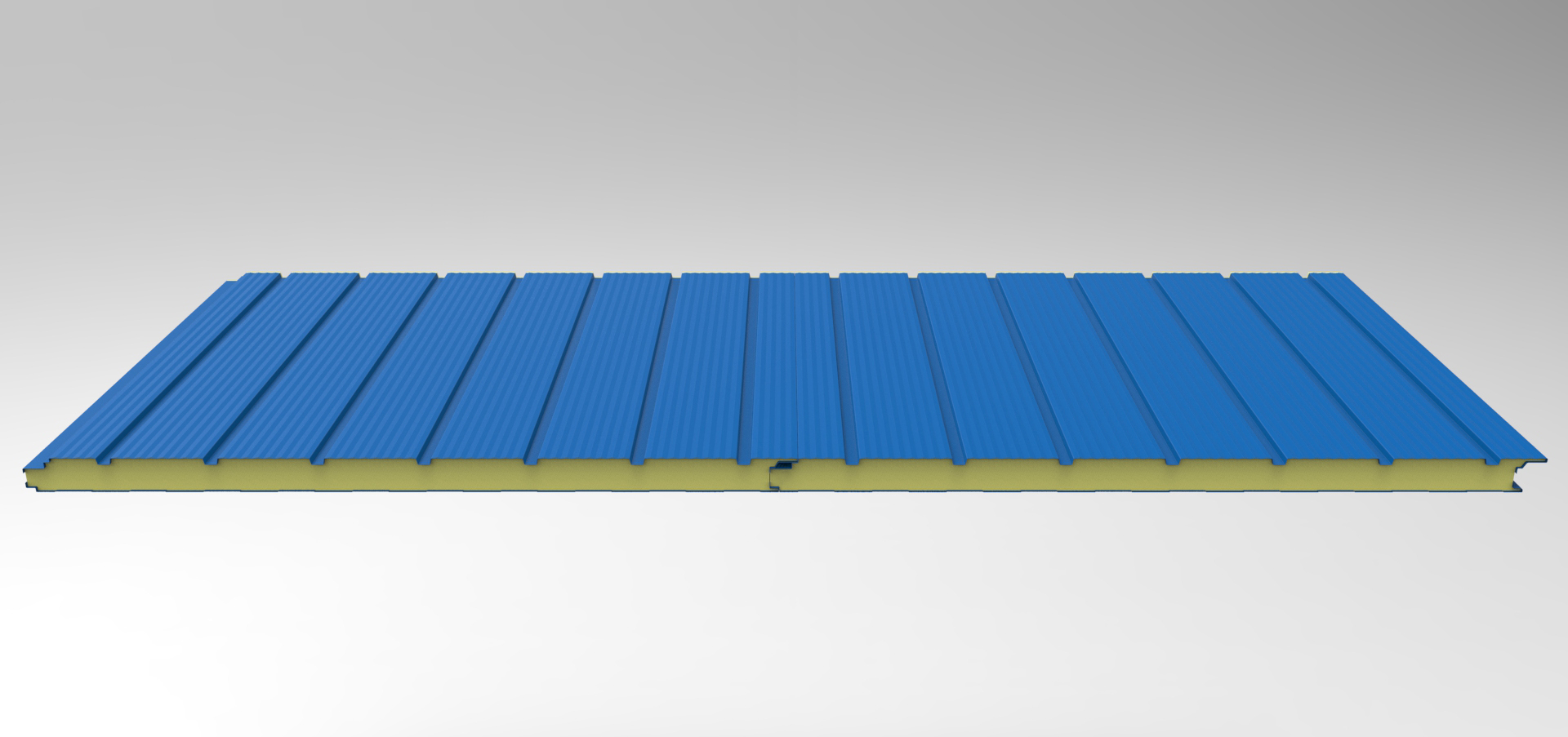

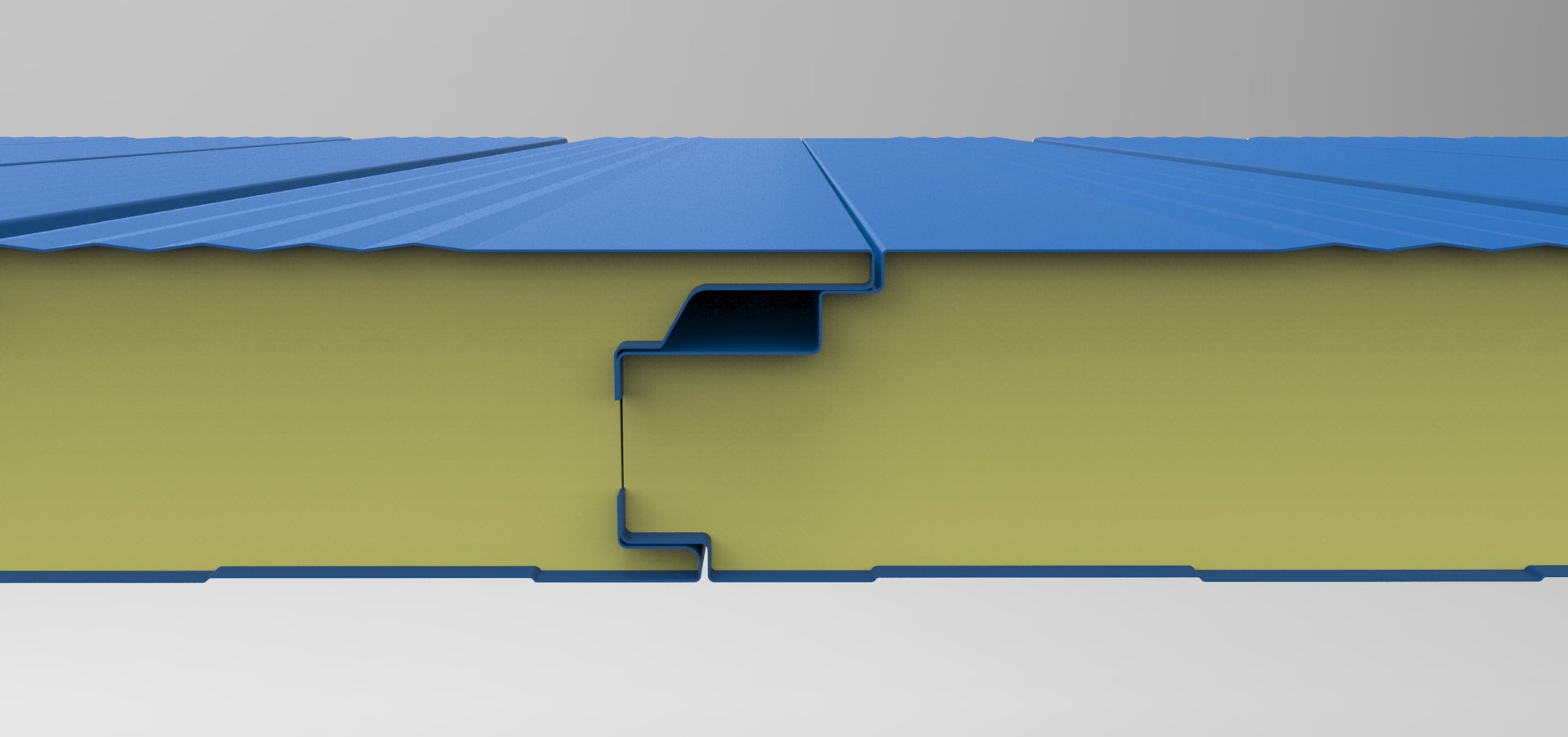

Roll Fuga Model
Roll Fuga Modeli
Görsel 1
Görsel 2
Görsel 3
Görsel 4

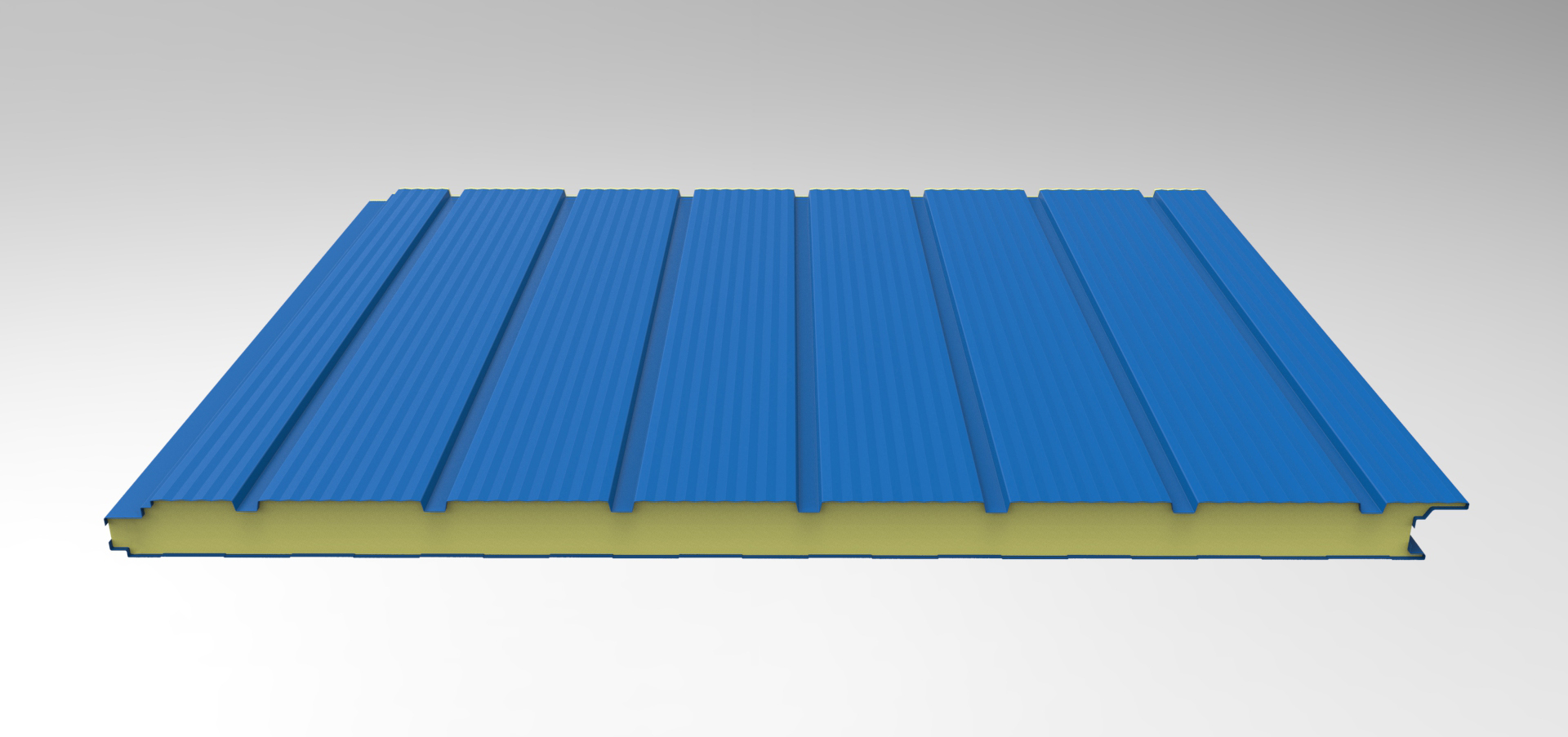

Roll Fuga Model

Our facade panel, distinguished by its sleek and modern roll fuga design, adapts to various architectural styles while offering high thermal insulation and durability.

Technical Specifications

Sheet Metal Properties Painted Galvanised Sheet Metal, Painted Aluminium
Paint Properties Polyester, PVDF, Plastisol, PVC
Useful Width 1000 mm
Minimum Length 2,5 m
Maximum Length 15 m
Thickness 40mm - 50mm - 60mm
Closed-Cell Ratio 90% (ASTM D 2856)
Thermal Conductivity Value λ 0,024 W/mK (EN 12667)
Level of Dimensional Stability -25 °C to 70 °C / 20 hours / max. 1% (UNI 8069)

Applications

  • Industrial Buildings
  • Commercial Buildings
  • Social Structures
  • Agricultural and Livestock Structures
  • Container Structures
Popup Görsel

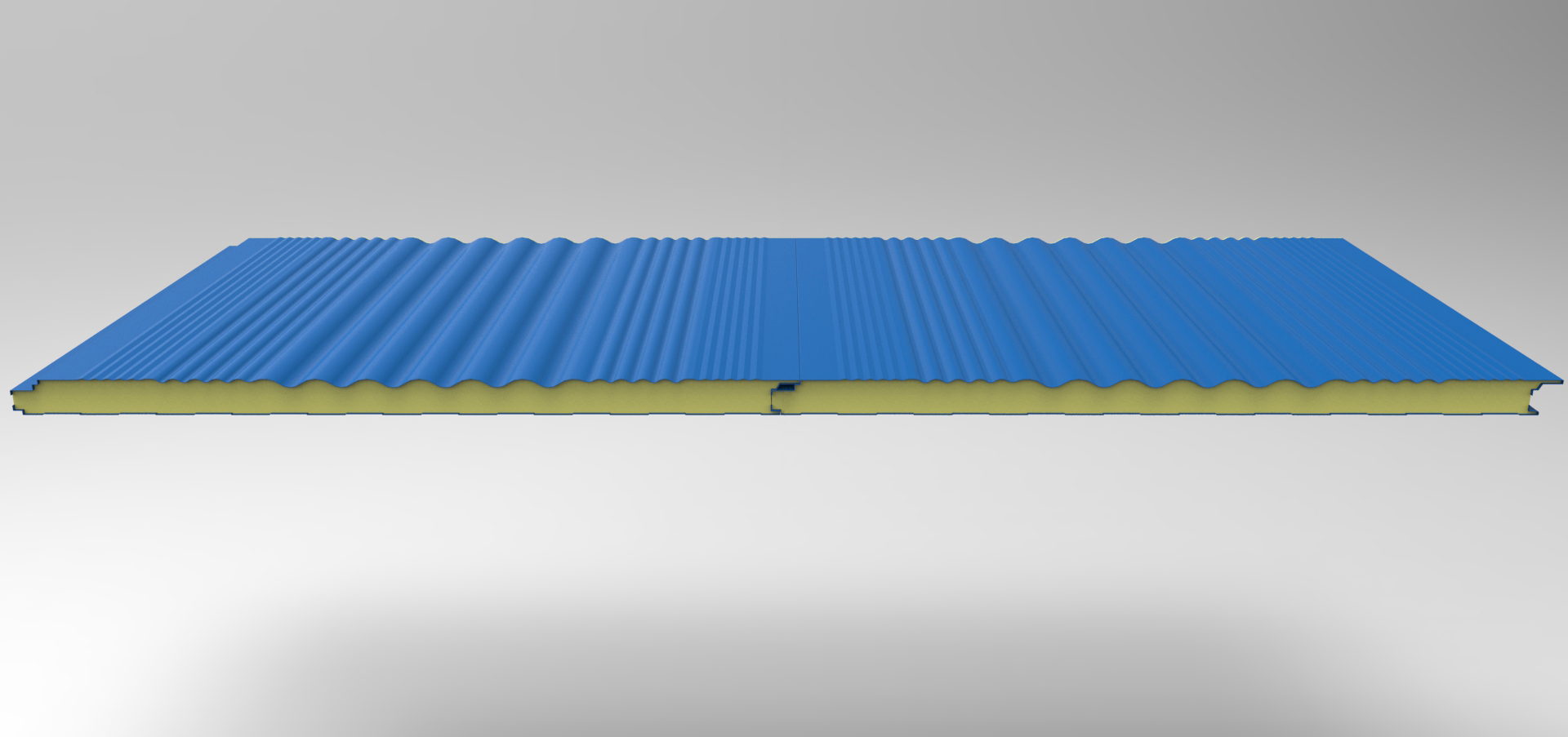

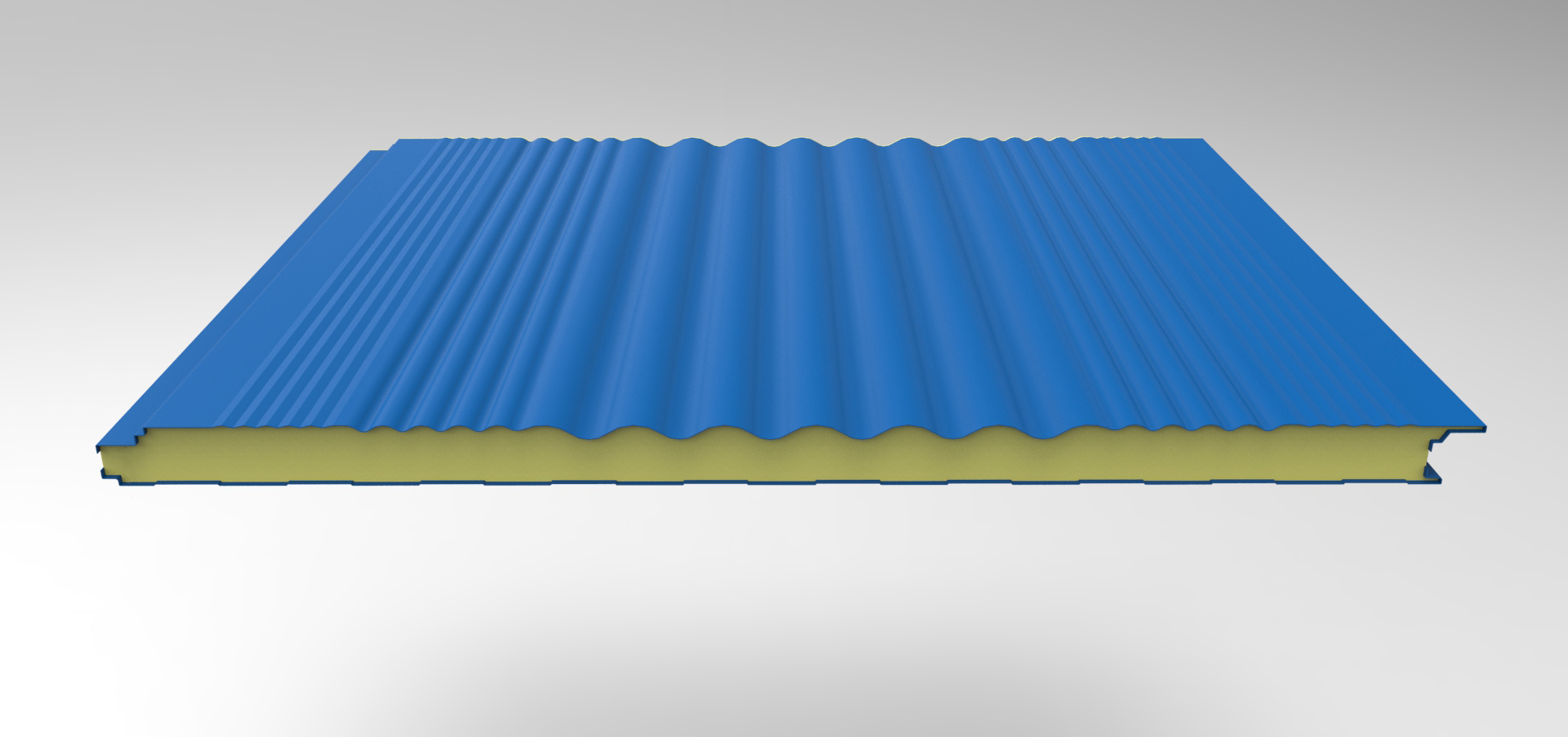

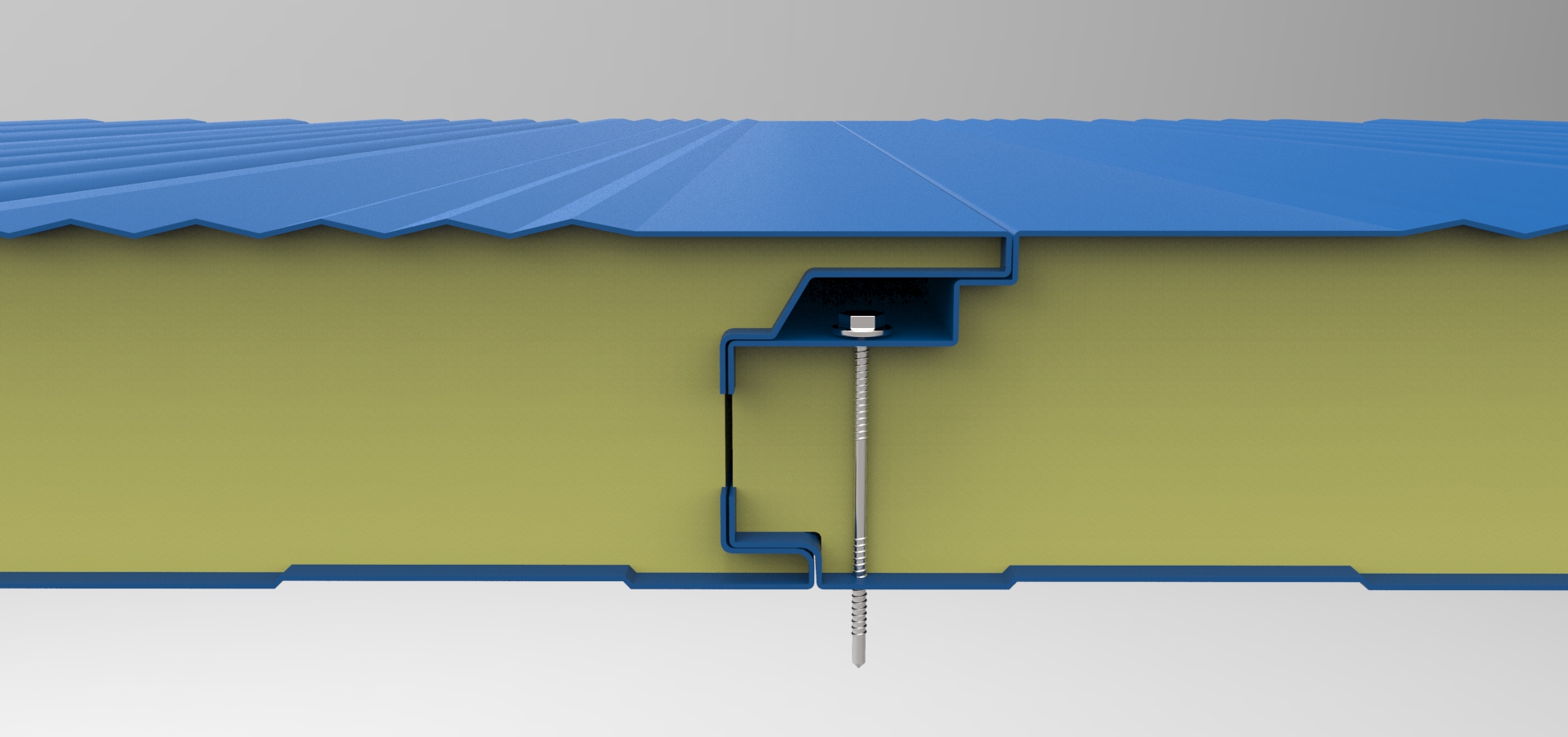

Roll Sine Model
Roll Sinüs Modeli
Görsel 1
Görsel 2
Görsel 3
Görsel 4

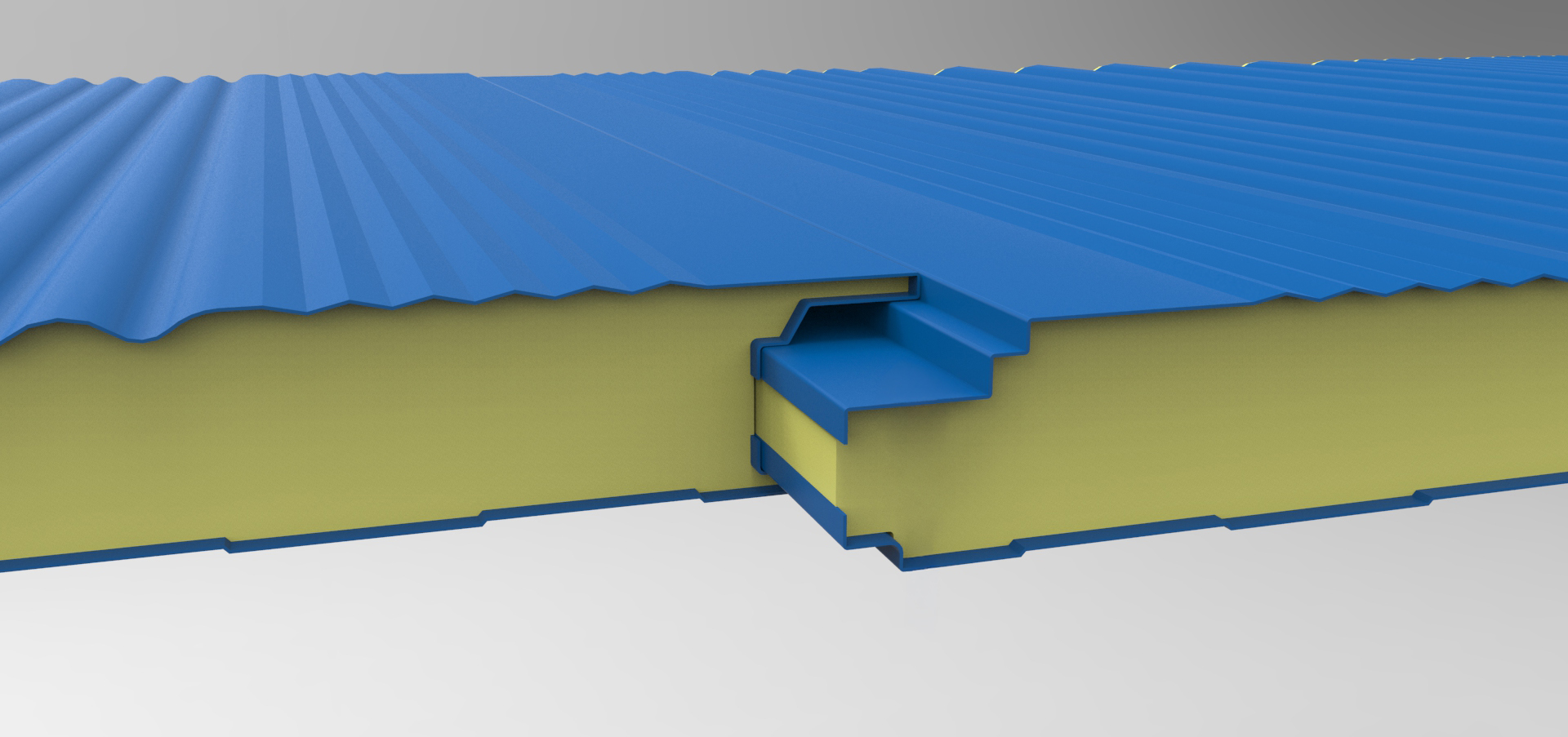

Roll Sine Model

Our façade panels, featuring a wavy sine wave pattern that offers an aesthetic and dynamic appearance, lend a distinctive character to modern architectural projects whilst delivering superior performance and durability.

Technical Specifications

Sheet Metal Properties Painted Galvanised Sheet Metal, Painted Aluminium
Paint Properties Polyester, PVDF, Plastisol, PVC
Useful Width 1000 mm
Minimum Length 2,5 m
Maximum Length 15 m
Thickness 40mm - 50mm - 60mm
Closed-Cell Ratio 90% (ASTM D 2856)
Thermal Conductivity Value λ 0,024 W/mK (EN 12667)
Level of Dimensional Stability -25 °C to 70 °C / 20 hours / max. 1% (UNI 8069)

Applications

  • Industrial Buildings
  • Commercial Buildings
  • Social Structures
  • Agricultural and Livestock Structures
  • Container Structures
Popup Görsel

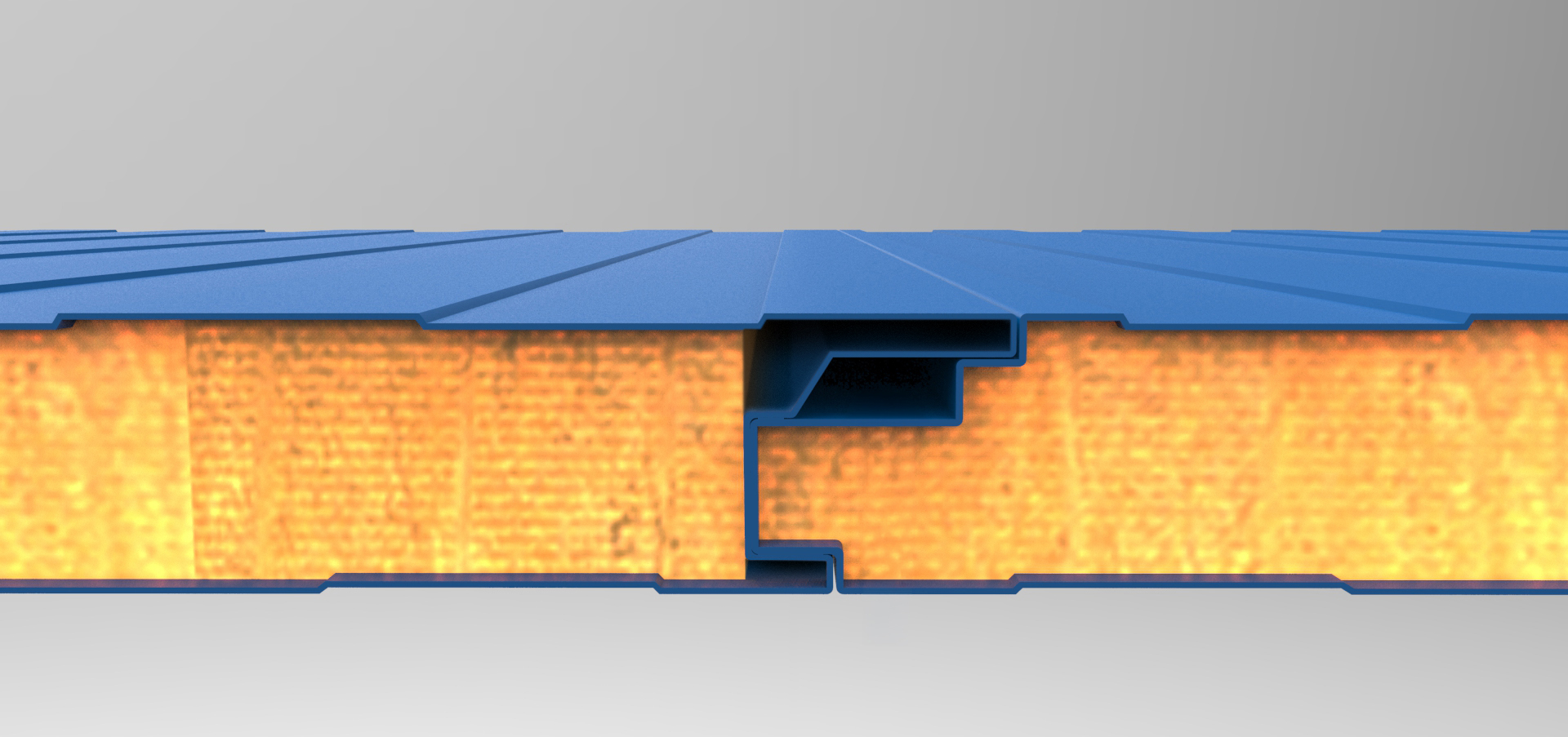

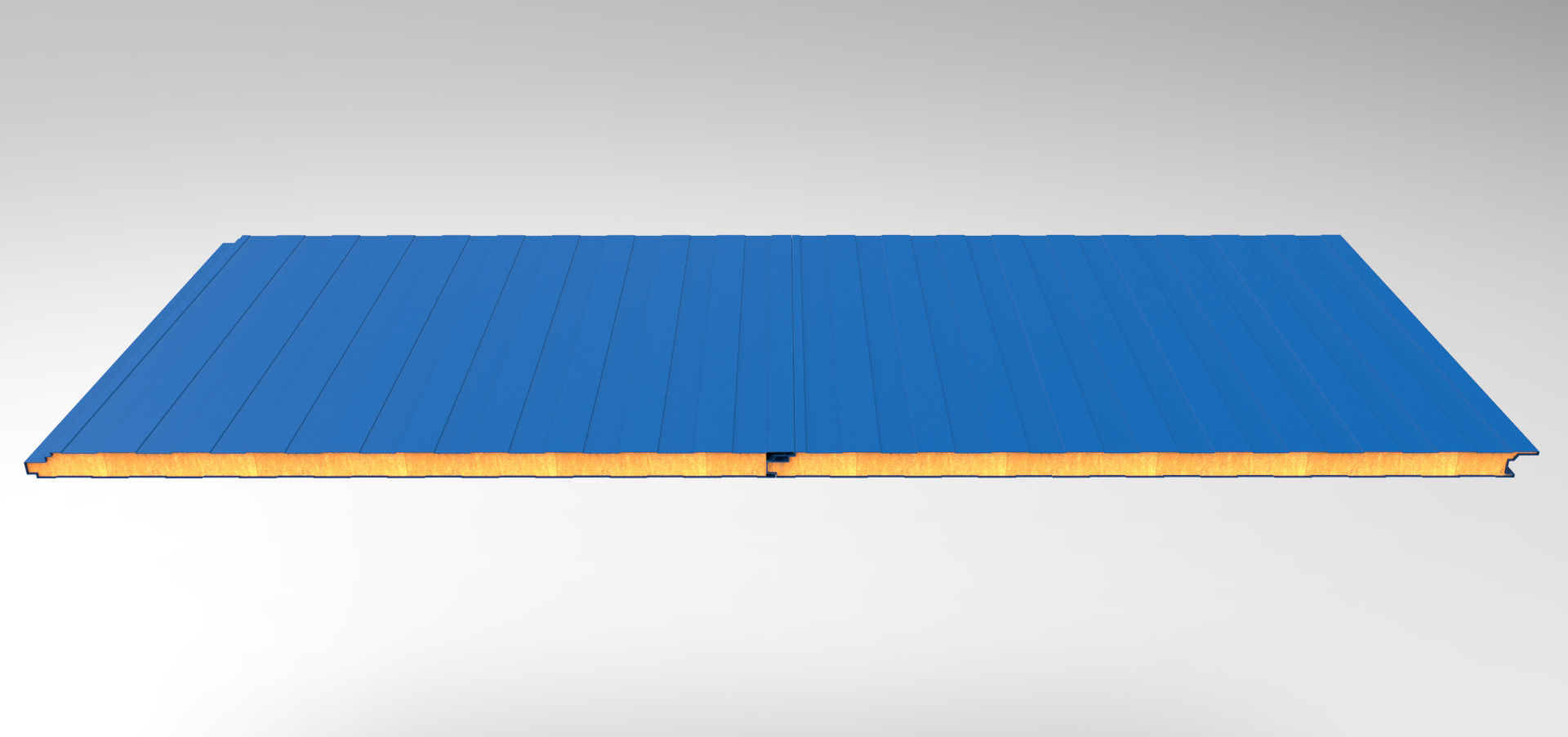

Concealed-Fix Rock Wool Facade Panel
Gizli Vidalı Taşyünü Cephe Paneli
Görsel 1
Görsel 2
Görsel 3

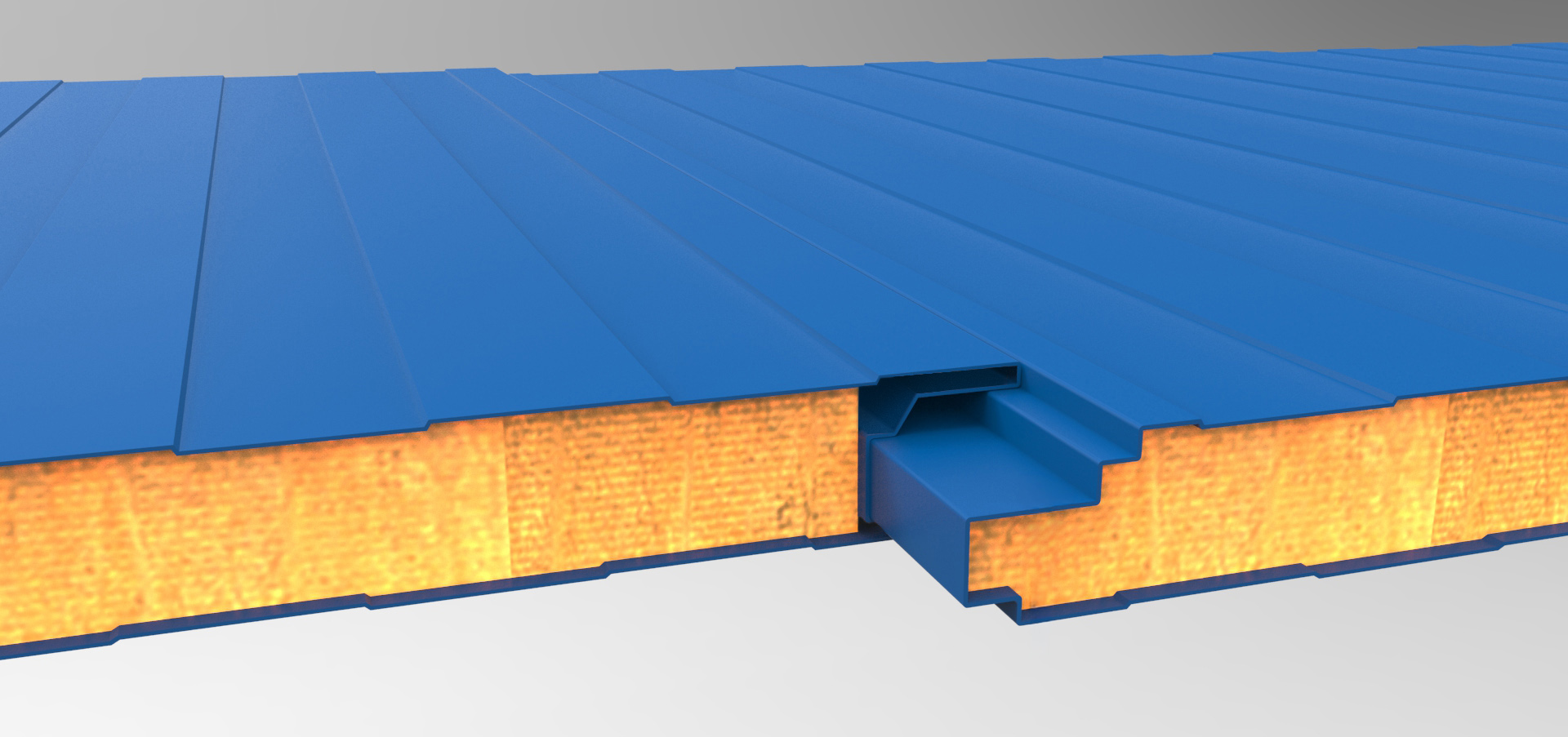

Concealed-Fix Rock Wool Facade Panel

Our concealed-fix rock wool-filled facade panel, offering high temperature resistance and fire safety, provides superior fire protection without compromising on aesthetics.

Technical Specifications

Sheet Metal Properties Painted Galvanised Sheet Metal, Painted Aluminium
Paint Properties Polyester, PVDF, Plastisol, PVC
Useful Width 1000 mm
Minimum Length 2,5 m
Maximum Length This varies depending on the shipping conditions.
Thickness 50mm - 60mm - 80mm
Temperature Resistance 600°C
Thermal Conductivity Value λ 0,024 W/mK (EN 12667)
Level of Dimensional Stability -25 °C to 70 °C / 20 hours / max. 1% (UNI 8069)
Rock Wool Density 100 (±10) kg/m³
Rock Wool Thickness 50-60-80-100-120-150 mm
Sound Insulation Rw [db] ≥ : 30

Applications

  • Industrial Buildings
  • Commercial Buildings
  • Social Structures
  • Agricultural and Livestock Structures
  • Container Structures
Popup Görsel
